Make a Knock Down Cutting Support

When you need to cut down larger boards, this practical cutting support allows you to set up instantly. Plus it perfectly fits between a Kreg Project Centre and Track Horse.

15/06/2019

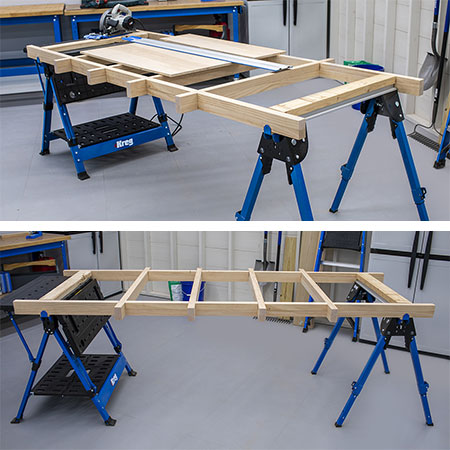

There will come a time when you need to cut down larger boards and this practical knock down cutting support allows you to set up instantly. Plus it perfectly fits between a Kreg Project Centre and Kreg Track Horse.

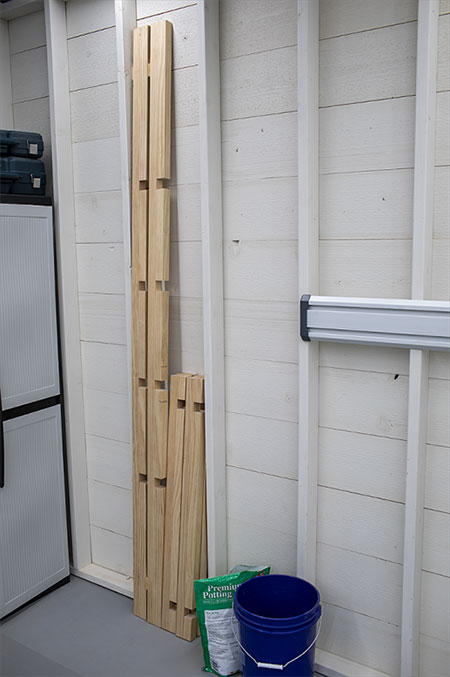

The knock down cutting support is made using PAR pine that you can buy at any Builders Warehouse or timber merchant, and lets you set up a cutting grid that can easily be stored when not in use. When taken apart, the cutting support takes up very little space and stores upright against a wall or on a shelf.





YOU WILL NEED:

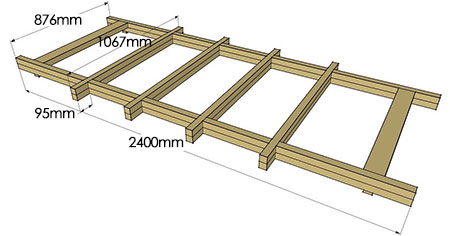

2 of 32 x 32 x 2400mm PAR pine - lower rail

4 of 32 x 32 x 603mm PAR pine - upper end rail

4 of 32 x 32 x 362mm PAR pine - outer rail filler

2 of 32 x 32 x 356mm PAR pine - centre rail filler

4 of 32 x 32 x 1067mm PAR pine - upper cross bar

4 of 32 x 32 x 800mm PAR pine - lower cross bar

8 of 32 x 32 x 95mm PAR pine - cross bar filler

4 of 32 x 32 x 12mm PAR pine - riser block

2 of 32 x 89 x 800mm PAR pine - cross bar

Wood glue



CONTINUES BELOW





TOOLS:

Miter saw or table saw

Clamps

Tape measure and pencil



HERE'S HOW:

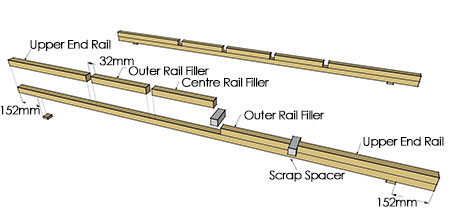

1. To assemble the rails, lay the individual pieces on a flat surface, making sure you arrange them correctly. Use wood glue to join the pieces, as shown above. Have some scrap spacers handy, but don’t accidentally glue the spacers in place. Use clamps or masking tape while the glue dries.

GOOD TO KNOW: No screws are used to join the pieces together so that you don’t have to worry about your saw blade hitting a nail or screw.





2. The Cross Bars fit in the tracks on top of either the Kreg Mobile Project Center or Track Horse.

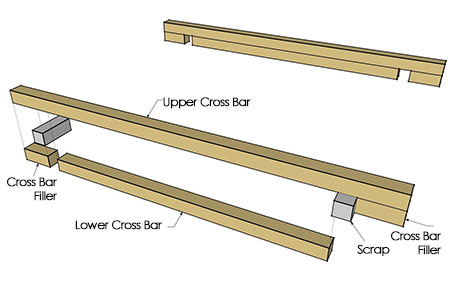

3. Assemble the Cross Bars with wood glue as shown below.

4. Test fit everything together and sand tight fittings, Sand away any excess glue.
